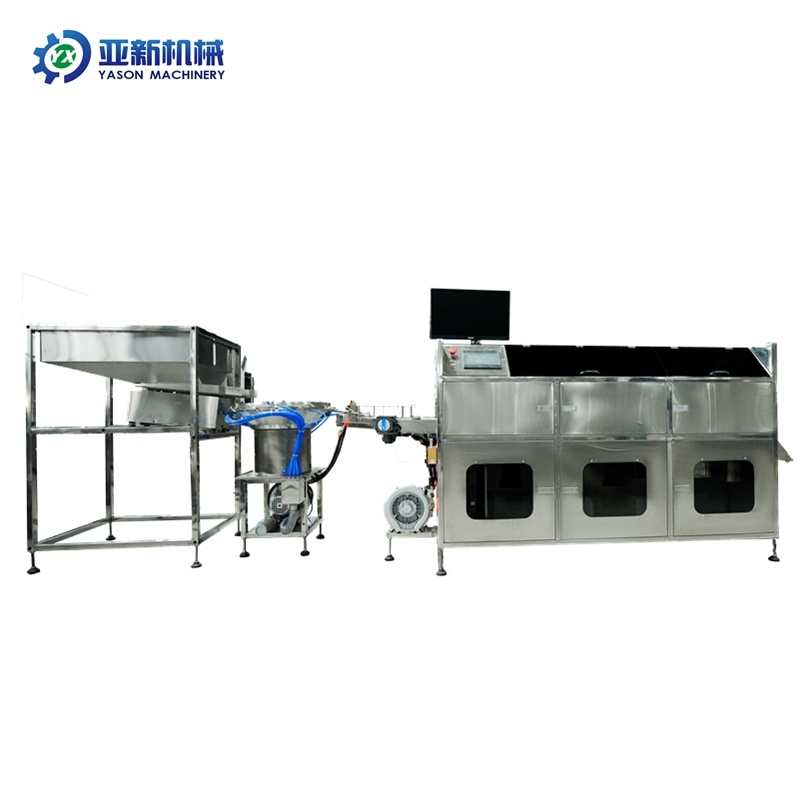

Six cameras Flip Off Seal Inspection machine

Products

Six cameras Flip Off Seal Inspection machine

Product No.:YX-JC-03-06

  • Details
Working process and principle:
Firstly,the inspection machine  deliver the material through vibrate plate,when the material pass the conveyor belt, the laser sensor  trigger the cameras to take pictures,then the computer will analyze and identify the pictures,and will send the analyzed results to PLC to implement. When the default products arrive in the rejection station,maganetic valve will be opened automatically,the compressor air will blow the defaults out.The qualified products will go to the next station and continue detect other items or go into the collecting cartons,detect finished.The machine is equipped with counter and carton change system.Moreover,this inspection machine can be connected with assembly machine or rubber fitting machine to increase efficiency,decrease labor cost and space.

Technical specifications:
Capacity 1000pcs/min
Opreator 1 person
Power 1.2KW
Voltage 220V
N.W. 200KG
Main frame dimension 2500*600*1100mm
Warranty 1 years for free components replacement













Inspect following defaults:
1)Wrong trademark;
2)Wrong color of plastic cap;
3)Stain and incomplete on the outer top of the plastic cap;
4)Deformation of aluminum cap;
5)The reviting part is not heated or serious deformation of the reviting part;
6)Plastic cap or aluminum cap missing;
7)Gap of aluminum cap;
8)Wrinkles of aluminum cap;
9)Gap of plastic cap side face;
10)Stain of combined flip off cap side face;
Remark:For item 1),the success rate is 100%,for item 2)to item 10),the success rate is 99.98%.

Brand names of main parts:
Camera: Basler from Germany;
Camera Lens:Computer from Japan;
PLC and Sensor:Omron from Japan;
Light source:Aupto;
IPC:IEI from Taiwan;
Maganetic Valve:MAC from USA

Previous Product:Fully Automatic Flip Off Aluminum Cap InspectionMachine
