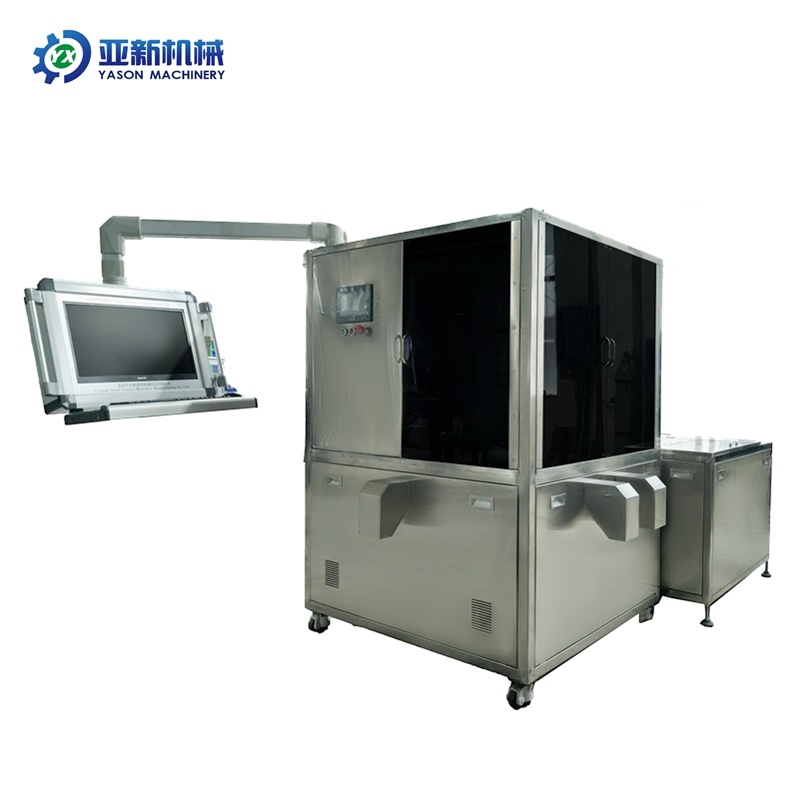

Yichang Yason General Machinery Manufacturing Co.,Ltd
1)Voltage 380V AC;
2)Power 2.5Kw;
3)Air pressure 0.4-0.6Mpa;
4)Dimension L 2600ⅹW 1330ⅹH 1760mm;
5)N.W.: 550kg
6)Inspection diameter: Ф8-Ф32mm;
7)Inspection speed: 1000pcs/min （ related to stopper diameter and inspection items）;
8)Inspection items: rubber stopper appearance pollution,cutting damage, punching damages, rubber shortage,bubble, fur, deformation etc.
Main structure:
Main structure:
Full machine is composed by vacuum suction lifting component, vibration material feeding component and rubber stopper inspection machine etc 3 parts. Vibration bowl material feeding component is composed by vibration bowl, chute, vibration bowl table, vibration bowl regulator, air blower. Vacuum suction component is composed by auto hopper, vacuum storage tank, material suction air pump, air pipe and sensor etc. Inspection machine is composed by machine frame, feedstock rotary turntable, drive plate, glass turntable, motor, reduction box, drive shaft, inspection camera, Control circuit group, Touch screen, computer, display, alarm etc.
